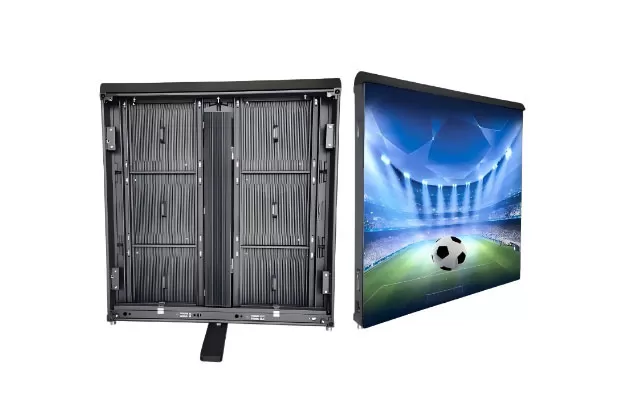

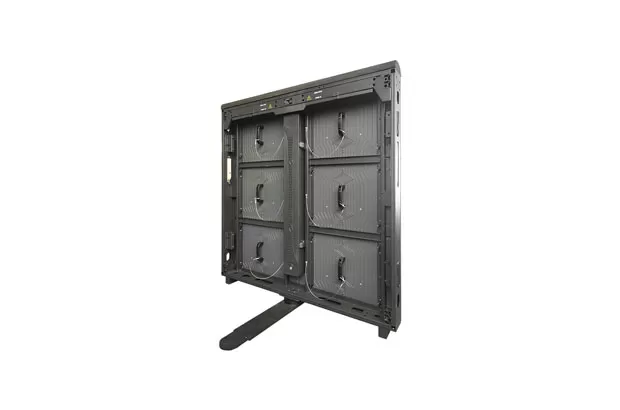

Platinum Sports is our ultimate solution for stadiums and sports fields. It is designed with footstand and top safer bumper.
| Platinum Sports | |||
| Item Number | PH6.6 | PH8 | PH10 |
| Pixel Pitch | 6.67 | 8 | 10 |
| Pixel Density | 22500 | 15625 | 10000 |
| LED Arrangement | SMD2727 | SMD3535 | SMD3535 |
| Module Resolution | 72*48 | 60*40 | 48*32 |
| Module Dimension | 480*320 | 480*320 | 480*320 |
| Module Weight | 2.3KG | 2.3KG | 2.3KG |
| Module Thickness | 23.5mm | 23.5mm | 23.5mm |
| Grey Scale(bit) | 14-16bit | 14-16bit | 14-16bit |
| Brightness Level | 6000-1000Onits | 6000-10000nits | 6000-10000nits |
| Cabinet Size | 960*960 | 960*960 | 960*960 |
| Cabinet Weight(Kg) | 34.8kg/m² | 34.8kg/m² | 34.8kg/m² |
| Cabinet Thickness(mm) | 101mm | 101mm | 101mm |
| Max Power Consumption/m² | 550w/m² | 550w/m² | 550w/m² |
| Ave Power Consumptionm² | 200w/m² | 200w/m² | 200w/m² |
| Visual View Angle | 160°/60°30° | 160°/60°/30° | 160°/60°30° |
| Operating Power Source | AC110-220V/200-240V | AC110-220V/200-240V | AC110-220V/200-240V |
| Operating Temperature | -30~+60 | -30~+60 | -30~+60 |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz |
| Protecting Rating | IP66 | IP66 | IP66 |
| Certificate | CE、FCC、ETL、EMC、CB、ROHS | CE、FCC、ETL、EMC、CB、ROHS | CE、FCC、ETL、EMC、CB、ROHS |
