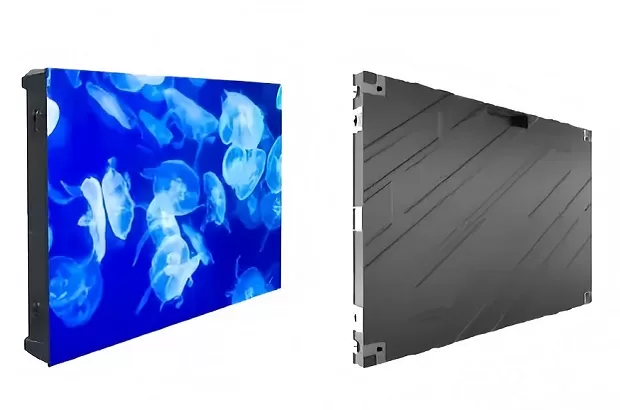

Die-Casting Aluminum Design: Compared with the traditional bulky cabinet, the die-casting aluminum cabinet with humanized design is stronger, more light-weight and preise. This LED panel is highly praised for bete user experience.
| Items | Technical Parameters | |||||
| Item No.: | KMT1.25 | KMT1.538 | KMT1.667 | KMT1.86 | KMT2 | KMT2.5 |
| Pixel Pitch | 1.25mm | 1.538mm | 1.667mm | 1.86mm | 2mm | 2.5mm |

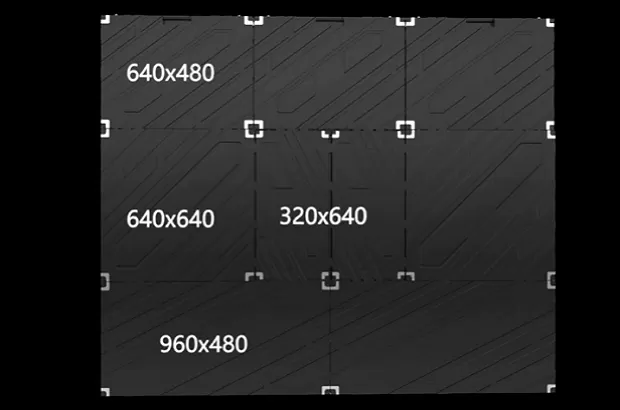

| Cabinet Size | 640*480mm(Or 640*640mm Or 960*480mm) | 640*480mm(Or 640*640mm Or 960*480mm) | 640*480mm(Or 640*640mm Or 960*480mm) | 640*480mm(Or 640*640mm Or 960*480mm) | 640*480mm(Or 640*640mm Or 960*480mm) | 640*480mm(Or 640*640mm Or 960*480mm) |
| Product Weight | 5.5KG(640*480mm) | 5.5KG(640*480mm) | 5.5KG(640*480mm) | 5.5KG(640*480mm) | 5.5KG(640*480mm) | 5.5KG(640*480mm) |
| Brightness | ≥500cd/m² | ≥600cd/m² | ≥600cd/m² | ≥600cd/m² | ≥600cd/m² | ≥600cd/m² |
| Visual Angle | 160°/160° (Horizontal/Vertical) | 160°/160° (Horizontal/Vertical) | 160°/160° (Horizontal/Vertical) | 160°/160° (Horizontal/Vertical) | 160°/160° (Horizontal/Vertical) | 160°/160° (Horizontal/Vertical) |
| The Optimal Visual Distance | ≥1m | ≥1.5m | ≥1.6m | ≥1.86m | ≥2m | ≥2.5m |
| Gray scale | It is available within 65536 grade | It is available within 65536 grade | It is available within 65536 grade | It is available within 65536 grade | It is available within 65536 grade | It is available within 65536 grade |
| Refreshing Ratio | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Module Qty/m² | 19.5 | 19.5 | 19.5 | 19.5 | 19.5 | 19.5 |
| Continue working time | >24(Hrs) | >24(Hrs) | >24(Hrs) | >24(Hrs) | >24(Hrs) | >24(Hrs) |
| Lifespan | >100,000(Hrs) | >100,000(Hrs) | >100,000(Hrs) | >100,000(Hrs) | >100,000(Hrs) | >100,000(Hrs) |
| The Max Power Consumption | 560W/m² | 560W/m² | 560W/m² | 560W/m² | 560W/m² | 560W/m² |
| The Average Power Consumption | 180W/m² | 180W/m² | 180W/m² | 180W/m² | 180W/m² | 180W/m² |
| Protection Grade | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
