Hanging Model：H03D
SELF-DEVELOPED IC, TRANSPARENT DISPLAY
LED DRIVER-IC SEPARATION, HOLO TRANSPARENT COOL DISPLAY
UNLIMITED WIDTH AND HEIGHT
| Product Model | H03D-P2.6 | H03D-P3.91 | H03D-P6.25 | |
| Pixel Pitch | 2.6 mm | 3.91 mm | 6.25 mm | |
| LED Type | SMD1415 | SMD1415 | SMD1921 | |
| Cabinet Dimensions(W*H*T) | Hx-100 | / | 750×1000×38 mm | / |
| Hx-120 | / | 750×1200×38 mm | / | |
| Hx-150 | 500×1500×38 mm | 750×1500×38 mm | ||
| Cabinet Resolution | Hx-100 | / | 192×256 pixels | / |
| Hx-120 | / | 192×308 pixels | / | |
| Hx-150 | 192×576 pixels | 192×384 pixels | 120×240 pixels | |
| Module Dimension | Hx-100 | / | 250×1000 mm | / |
| Hx-120 | / | 250×1200 mm | / | |
| Hx-150 | 250×1500 mm | |||
| Module Resolution | Hx-100 | / | 64×256 pixels | / |
| Hx-120 | / | 64×308 pixels | / | |
| Hx-150 | 96×576 pixels | 64×384 pixels | 40×240 pixels | |
| Physical Transparency | 20% | 35% | 32% | |
| Brightness | ≤ 3500 nits | ≤ 3200 nits | ||
| Weight | 5.2 kg | |||
| Refresh Rate | 3840~7680Hz | |||
| Color Temperature | 3000~10000 K | |||
| Protection Rating | IP40 | |||
| Max.Power Consumption | 350 W/m² | |||
| Avg.Power Consumption | 140 W/m² | |||
| Input Voltage | AC 90~240V | |||
| operating Temperature&Humidity | -20~50℃,0~80% | |||
| Cabinet Material | Aluminum | |||
| Installation Method | Floor-standing、Hanging、Mounting | |||
| Control Card System | Novastar,Colorlight,Syslution,Mooncell | |||
| Warranty | 12 Months | |||
SELF-DEVELOPED IC, TRANSPARENT DISPLAY
KMT's driver IC, specially designed for transparent displays, measures just 1.4*1.4*0.5 mm, and is fully hidden behind the PCB board, enabling ultra-high transparency with no visible black spots, while supporting high refresh rates and high brightness.
LED DRIVER-IC SEPARATION, HOLO TRANSPARENT COOL DISPLAY
Adopts an optimized LED Driver-IC Separation design, with externally mounted and evenly distributed chips to deliver excellent heat dissipation. This fundamentally ensures color accuracy without color shift and provides more stable operation. Even during long-term continuous use, the screen.
UNLIMITED WIDTH AND HEIGHT
The modules support unlimited horizontal and vertical expansion with high-precision splicing. Seamless connections between cabinets ensure a flat, uniform, and visually consistent large-scale display. In addition, the screen supports ±15°curved expansion, further enhancing flexibility and scalability for diverse display applications.

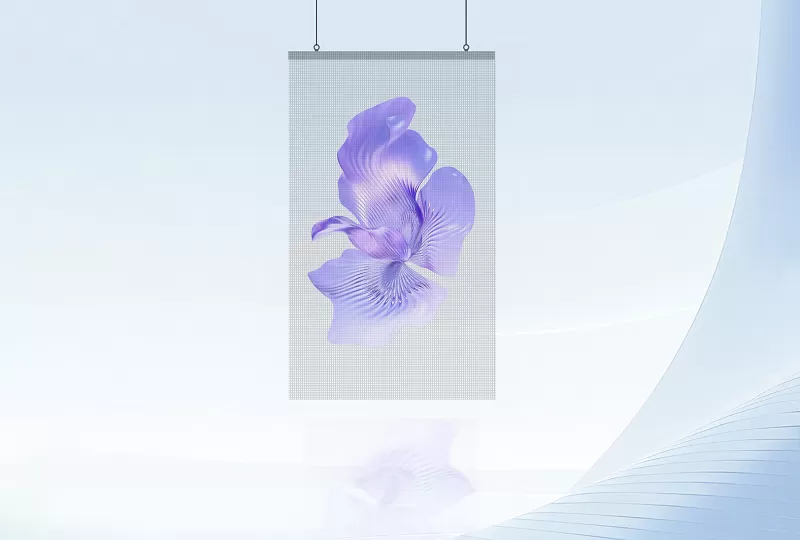

1.Single-Unit Hanging Installation

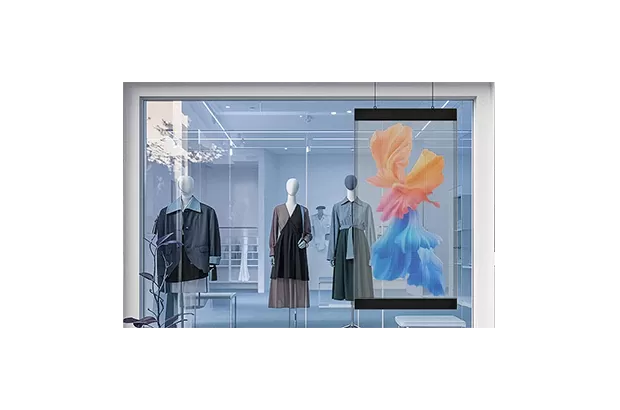

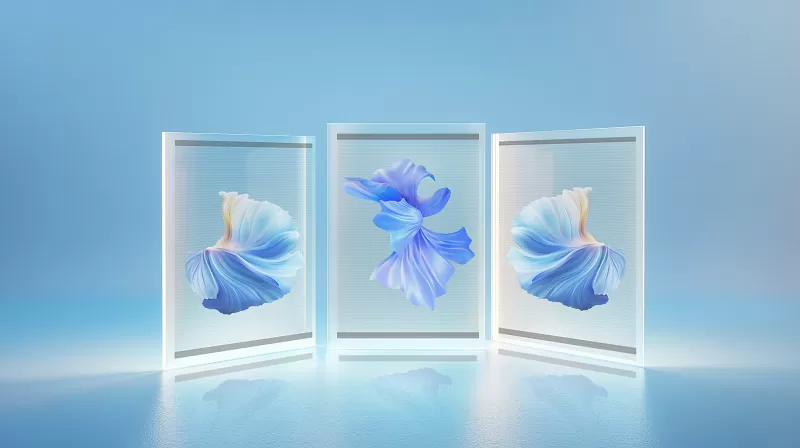

2. Glass Mounting

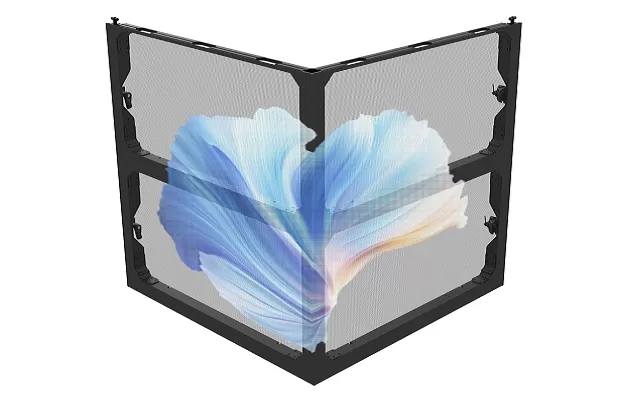

3、Supports ±15°Curved Splicing Installation
