Indoor Front Service LED Display (Iposter） P1.25 P1.53 P1.86 P2 P2.5(640×1920mm)
| Pixel Pitch | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
| LED Type | SMD1010 | SMD1212 | SMD1515 | SMD2020 | SMD2020 |
| Physical Density (dots/m²) | 640000 | 428613 | 288906 | 250000 | 160000 |
| Module Resolution | 256×128 | 209×105 | 172×86 | 160×80 | 128×64 |
| Module Size(WxH) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
| Cabinet Size(mm) | 640×1920 | 640×1920 | 640×1920 | 640×1920 | 640×1920 |
| Cabinet Resolution | 512×1536 | 418×1254 | 344×1032 | 320×960 | 256×768 |
| Cabinet Weight(kg) | 40kg | 40kg | 40kg | 40kg | 40kg |
| Maintenance Mode | Front maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Brightness | 600-800cd | 600-800cd | 600-800cd | 600-800cd | 600-800cd |
| Viewing angle(H/V) | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| The best viewing distance | ≥1.25m | ≥1.53m | ≥1.86m | ≥2m | ≥2.5m |
| Drive Mode | Static,1/60 | Static,1/52 | Static,1/43 | Static,1/40 | Static,1/32 |
| Grey Level | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Refresh Rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Max Power Consumption(W/m²) | 900 | 900 | 900 | 900 | 900 |
| Average Power Consumption(W/m²) | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
| IP Grade | IP43 | IP43 | IP43 | IP43 | IP43 |
| Input Power | AC90-264V,47-63 Hz | ||||
| Working Temperature/Humidity (℃/RH) | -20-60℃/10%-90% | ||||
| Storage Temperature/Humidity (℃/RH) | -30-70℃/10%-90% | ||||

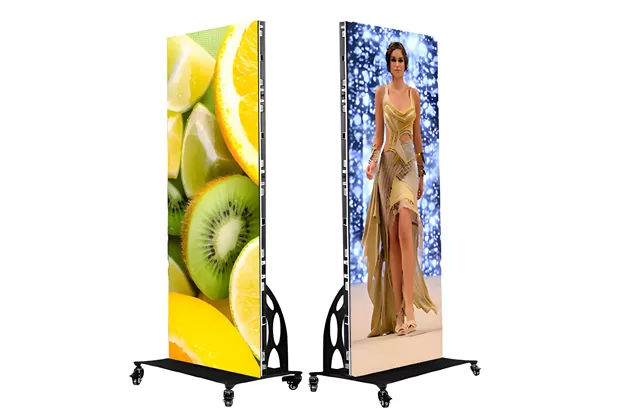

Many traditional posters LED, when they connect together, clients are often bothered by the unavoidable black frame line between posters, because it affects a lot the display effect as a big screen.
But for this product, thanks for the die-casting cabinet design, there is no any black frame line between posters and the splicing is seamless. When you put multiple posters together, they can perform like one big beautiful display. You won't even notice the stitching gap between screens.
Front service design, more conducive to maintenance, saving more time for repair.
Small spacing makes your advertising screen clearer. Non-integrated design provides convenience for transportation.
The combination of high resolution, high refresh and small spacing makes every frame of this AP3 series advertising display vivid and can quickly attract attention.
The maximum power is 480/㎡, which is much lower than other similar products on the market, more energy-saving.
The brightness of this product can reach 800 nits, which can display advertisements very clearly without hurting the eyes.
