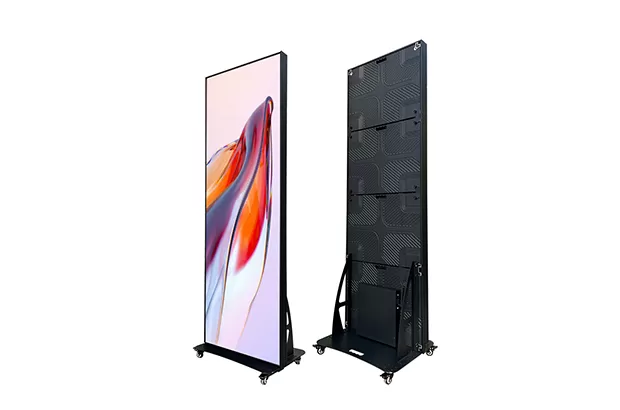

AP2 Series (P1.25, P1.53, P1.86, P2, P2.5)

AP2 Series (P1.25, P1.53, P1.86, P2, P2.5) (640×1920mm)

Name: AP2 Series (P1.25, P1.53, P1.86, P2, P2.5)
Brand: Shenzhen KMTEKLED Photoelectricity Co.,LTD.
Availability: InStock

Indoor Die-cast aluminum LED Poster 64x192cm Floor Standing LED Poster Display Player Digital Advertising Video Screen

Case Studies

Specifications

Features

AP2 Series (P1.25, P1.53, P1.86, P2, P2.5) Case Studies

AP2 Series (P1.25, P1.53, P1.86, P2, P2.5) Video

AP2 Series (P1.25, P1.53, P1.86, P2, P2.5) Specifications

Pixel Pitch	P1.25	P1.53	P1.86	P2	P2.5
LED Type	SMD1010	SMD1212	SMD1515	SMD1515	SMD2020
Physical Density (dots/m²)	640000	428613	288906	250000	160000
Module Resolution	256×128	209×105	172×86	160×80	128×64
Module Size (WxH)	320×160	320×160	320×160	320×160	320×160
Cabinet Size (mm)	640×1920	640×1920	640×1920	640×1920	640×1920
Cabinet Resolution	512×1536	418×1255	344×1032	320×960	256×768
Cabinet Weight (kg)	40kg	40kg	40kg	40kg	40kg
Maintenance Mode	Front maintenance	Front maintenance	Front maintenance	Front maintenance	Front maintenance
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Brightness	600-800cd	600-800cd	600-800cd	600-800cd	600-800cd
Viewing angle (H/V)	140°/140°	140°/140°	140°/140°	140°/140°	140°/140°
The best viewing distance	≥1.25m	≥1.53m	≥1.86m	≥2m	≥2.5m
Drive Mode	Static, 1/64 Scan	Static, 1/52 Scan	Static, 1/43 Scan	Static, 1/40 Scan	Static, 1/32 Scan
Grey Level	14-16 bit	14-16 bit	14-16 bit	14-16 bit	14-16 bit
Refresh Rate (Hz)	3840	3840	3840	3840	3840
Max Power Consumption (W/m²)	900	900	900	900	900
Average Power Consumption (W/m²)	100-200	100-200	100-200	100-200	100-200
IP Grade	IP43	IP43	IP43	IP43	IP43
Input Power	AC90-264V, 47-63 Hz
Working Temperature/Humidity (℃/RH)	-20-60℃/10%-90%
Storage Temperature/Humidity (℃/RH)	-30-70℃/10%-90%

AP2 Series (P1.25, P1.53, P1.86, P2, P2.5) Detailed Information and Features

Show Details

Attract customers from adistance

LED active light, brightness is 3 times that of liquid crystal 0.64*1.92 meters full screen display, shock display, 20 meters visual distance, video advertising information transmission faster, more intelligent innovation, can be moved at any time.

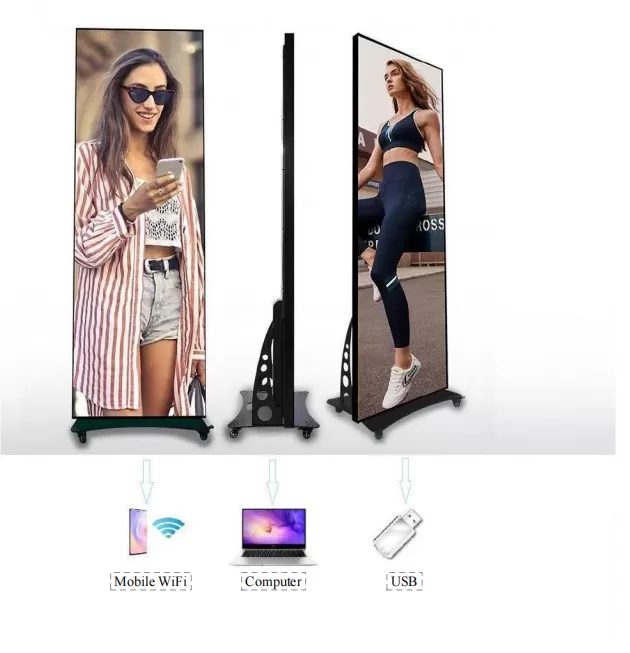

Intelligent management APP Easily upload content to achieve unified playback and management

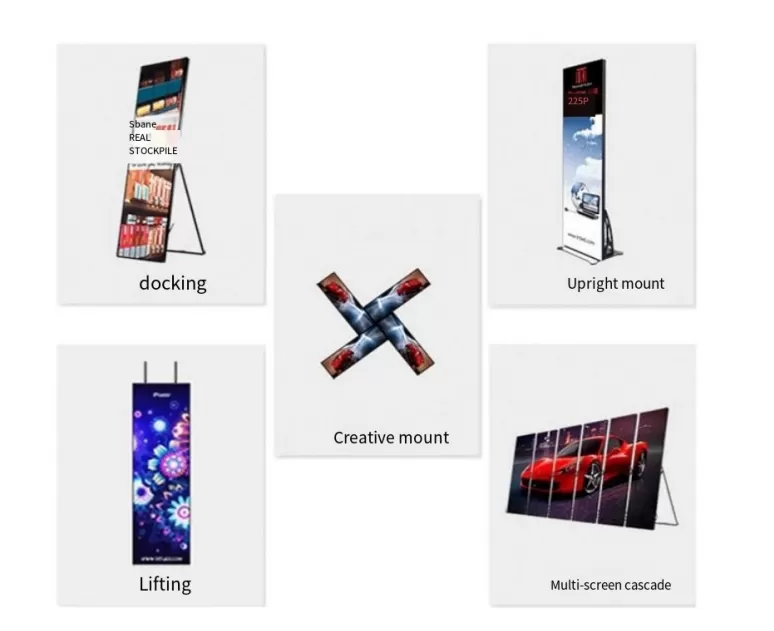

Multiple installation methods

Support hoisting, wall hanging installation, seat installation, diagonastrut installation, and other installation methods.

All-roundprotection, anti-collision, anti-pressure, anti-seismic, water proof protection
