Indoor Rental LED Display P1.56,P1.9,P2.6,P2.9,P3.9,P4.8 (Direct connection module and hub board, no flat cables)
| IR3 H Sereis Parameters | ||||||
| Item | P1.56 | P1.9 | P2.6 | P2.9 | P3.91 | P4.81 |
| Pixel Pitch | 1.56mm | 1.953mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Module Resolution | 160dots x 160dots | 128dots x 128dots | 96dots x 96dots | 84dots x 84dots | 64dots x 64dots | 52dots x 52dots |
| Driving Mode | 1/32 scan | 1/32 scan | 1/24 scan | 1/21 scan | 1/16 scan | 1/13 scan |
| Module Pixels | 25,600dots | 16,384dots | 9,216dots | 7,056dots | 4,096dots | 2,704dots |
| Module Size(mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Cabinet Size(mm) | 500 x 500/1000 | 500 x 500/1000 | 500 x 500/1000 | 500 x 500/1000 | 500 x 500/1000 | 500 x 500/1000 |
| Cabinet Resolution(dots) | 320 x 320/640dots | 258 x 258/516dots | 192 x 192/384dots | 168 x 168/336dots | 128 x 128/256dots | 104 x 104/208dots |
| Pixel Density(dots/m²) | 409,600 | 282,144 | 147,456 | 112,896 | 65,536 | 43,264 |
| Minimum Viewing Distance | ≥1.5m | ≥1.9m | ≥2.6m | ≥2.9m | ≥3.9m | ≥4.8m |
| Brightness | 600~800nits | 600~800nits | 600~800nits | 600~800nits | ≥800nits | ≥800nits |
| IP Grade | IP43 | IP43 | IP43 | IP43 | IP43 | IP43 |
| Refresh Rate | 1920Hz~7,680Hz | 1920Hz~7,680Hz | 1920Hz~7,680Hz | 1920Hz~7,680Hz | 1920Hz~7,680Hz | 1920Hz~7,680Hz |
| Gray Scale | 12~16bits | 12~16bits | 12~16bits | 12~16bits | 12~16bits | 12~16bits |
| Viewing Angle | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Maximum Power Consumption | 520(W/m²) | 520(W/m²) | 520(W/m²) | 520(W/m²) | 520(W/m²) | 520(W/m²) |
| Average Power Consumption | 175(W/m²) | 175(W/m²) | 175(W/m²) | 175(W/m²) | 175(W/m²) | 175(W/m²) |
| Inout Voltage | AC110V~AC220V | AC110V~AC220V | AC110V~AC220V | AC110V~AC220V | AC110V~AC220V | AC110V~AC220V |
| 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | |
| Operating Temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
| Operating Humidity | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel |
| Operating System | Windows (Win7,Win8,etc.) | Windows (Win7,Win8,etc.) | Windows (Win7,Win8,etc.) | Windows (Win7,Win10,etc.) | Windows (Win7,Win10,etc.) | Windows (Win7,Win10,etc.) |
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI, | DVI,HDMI1.3,DP1.2,SDI, | DVI,HDMI1.3,DP1.2,SDI, | DVI,HDMI1.3,DP1.2,SDI, | DVI,HDMI1.3,DP1.2,SDI, | DVI,HDMI1.3,DP1.2,SDI, |
| HDMI2.0,etc | HDMI2.0,etc | HDMI2.0,etc | HDMI2.0,etc | HDMI2.0,etc | HDMI2.0,etc | |

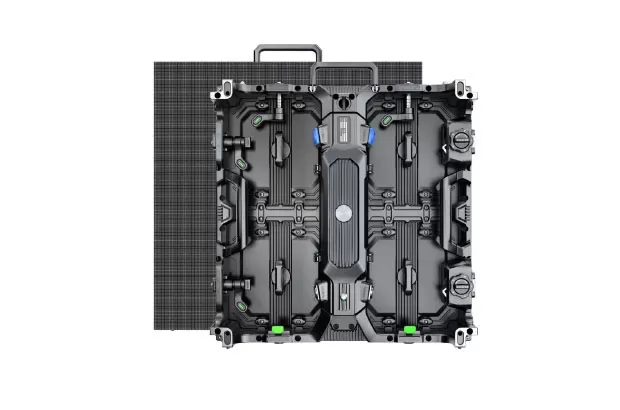

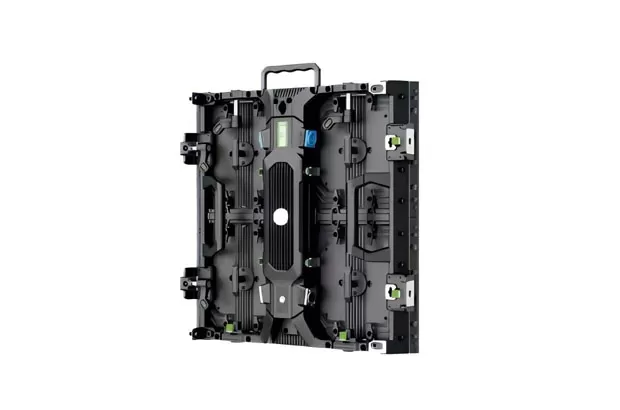

As the cabinet uses die-cast aluminum material, the weight of the panel is only 9 kgs, and it has great heat dissipation.
The power supply box is easy to disassemble, you only need to open the button next to the box, and you can easily replace it.
The lock is very secure and strong. It can be designed to be curved to form a curved screen from -15° (convex) to +15° (concave).
With its excellent video performance, create an immersive and dynamic visual experience. Provide viewers with a dynamic and engaging visual experience.
Activity; Stages; Exhibitionhall; Sports Events.
