GS Series (P1.9, P2.6, P2.9, P3.91, P4.81)

GS Series (P1.9, P2.6, P2.9, P3.91, P4.81) (500x500/1000mm)

Name: GS Series (P1.9, P2.6, P2.9, P3.91, P4.81)
Brand: Shenzhen KMTEKLED Photoelectricity Co.,LTD.
Availability: InStock

Start from the precise design of rental application

Case Studies

Specifications

Features

GS Series(P1.9, P2.6, P2.9, P3.91, P4.81) Case Studies

GS Series(P1.9, P2.6, P2.9, P3.91, P4.81)(500x500/1000mm) Video

GS Series(P1.9, P2.6, P2.9, P3.91,P4.81) Specifications

Parameters (Indoor)
Item	P1.9	P2.6	P2.9	P3.91
Pixel Pitch	1.953mm	2.604mm	2.976mm	3.91mm
LED Type	SMD1415	SMD1415	SMD1415	SMD2020
Module Resolution	128dots x 128dots	96dots x 96dots	84dots x 84dots	64dots x 64dots
Driving Mode	1/32 scan	1/32 scan	1/28 scan	1/16 scan
Module Pixels	16,384dots	9,216dots	7,056dots	4,096dots
Module Size(mm)	250 x 250
Cabinet Size(mm)	500 x 500/1000
Cabinet Resolution(dots)	258 x 258/516dots	192 x 192/384dots	168 x 168/336dots	128 x 128/256dots
Pixel Density(dots/m²)	282,144	147,456	112,896	65,536
Minimum Viewing Distance	≥1.9m	≥2.6m	≥2.9m	≥3.9m
Brightness	600~800nits	600~800nits	600~800nits	≥800nits
IP Grade	IP43
Refresh Rate	1920Hz~7,680Hz
Gray Scale	12~16bits
Viewing Angle	160°/160°
Maximum Power Consumption	520(W/m²)
Average Power Consumption	175(W/m²)
Inout Voltage	AC110V~AC220V
Inout Voltage	50Hz/60Hz
Operating Temperature	-20℃~60℃
Operating Humidity	10%~90%
Cabinet Material	Die-casting Aluminum
Cabinet Weight	7.5kg/panel
Operating System	Windows (Win7,Win8,etc.)
Signal Source Compatibility	DVI,HDMI1.3,DP1.2,
Signal Source Compatibility	SDI,HDMI2.0,etc

Parameters (Outdoor)
Item	P2.6	P2.9	P3.91	P4.81
Pixel Pitch	2.604mm	2.976mm	3.91mm	4.81mm
LED Type	SMD1415	SMD1415	SMD1921	SMD1921
Module Resolution	96dots x 96dots	84dots x 84dots	64dots x 64dots	52dots x 52dots
Driving Mode	1/16 scan	1/14 scan	1/16 scan	1/13 scan
Module Pixels	9,216dots	7,056dots	4,096dots	2,704dots
Module Size(mm)	250 x 250
Cabinet Size(mm)	500 x 500/1000
Cabinet Resolution(dots)	192 x 192/384dots	168 x 168/336dots	128 x 128/256dots	104 x 104/208dots
Pixel Density(dots/m²)	147,456	112,896	65,536	43,264
Minimum Viewing Distance	≥2.6m	≥2.9m	≥3.9m	≥4.8m
Brightness	≥4500nits
IP Grade	IP65
Refresh Rate	1920Hz~7,680Hz
Gray Scale	12~16bits
Viewing Angle	160°/160°
Maximum Power Consumption	800(W/m²)
Average Power Consumption	240(W/m²)
Inout Voltage	AC110V~AC220V
Inout Voltage	50Hz/60Hz
Operating Temperature	-20℃~60℃
Operating Humidity	10%~90%
Cabinet Material	Die-casting Aluminum
Cabinet Weight	7.5kg/panel
Operating System	Windows (Win7,Win8,etc.)
Signal Source Compatibility	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc

GS Series(P1.9, P2.6, P2.9, P3.91, P4.81) Detailed Information and Features

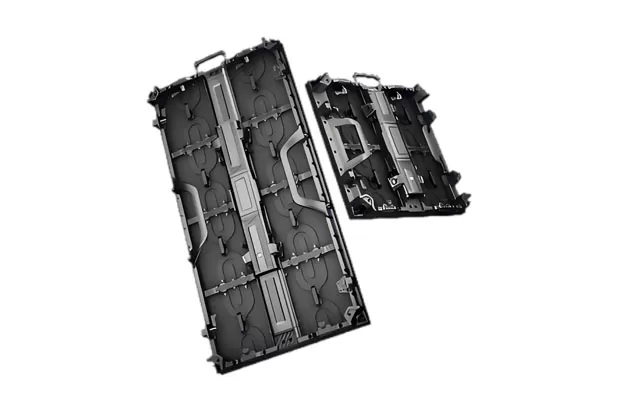

Start from the precise design of rental application. The entire GS series are dedicated to solve the problems of instant installation, easy maintenance and anti-collision for rental applications.
